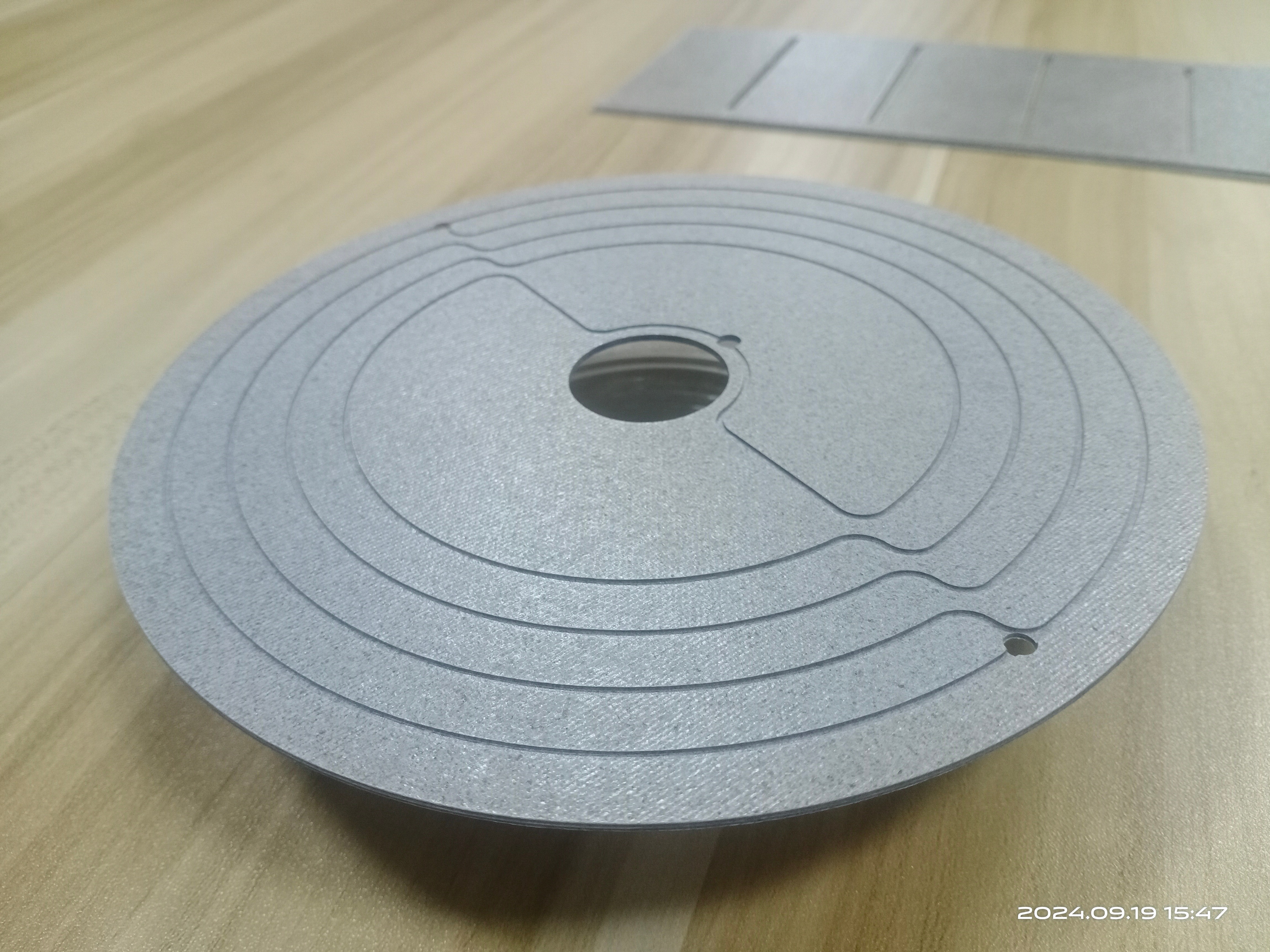

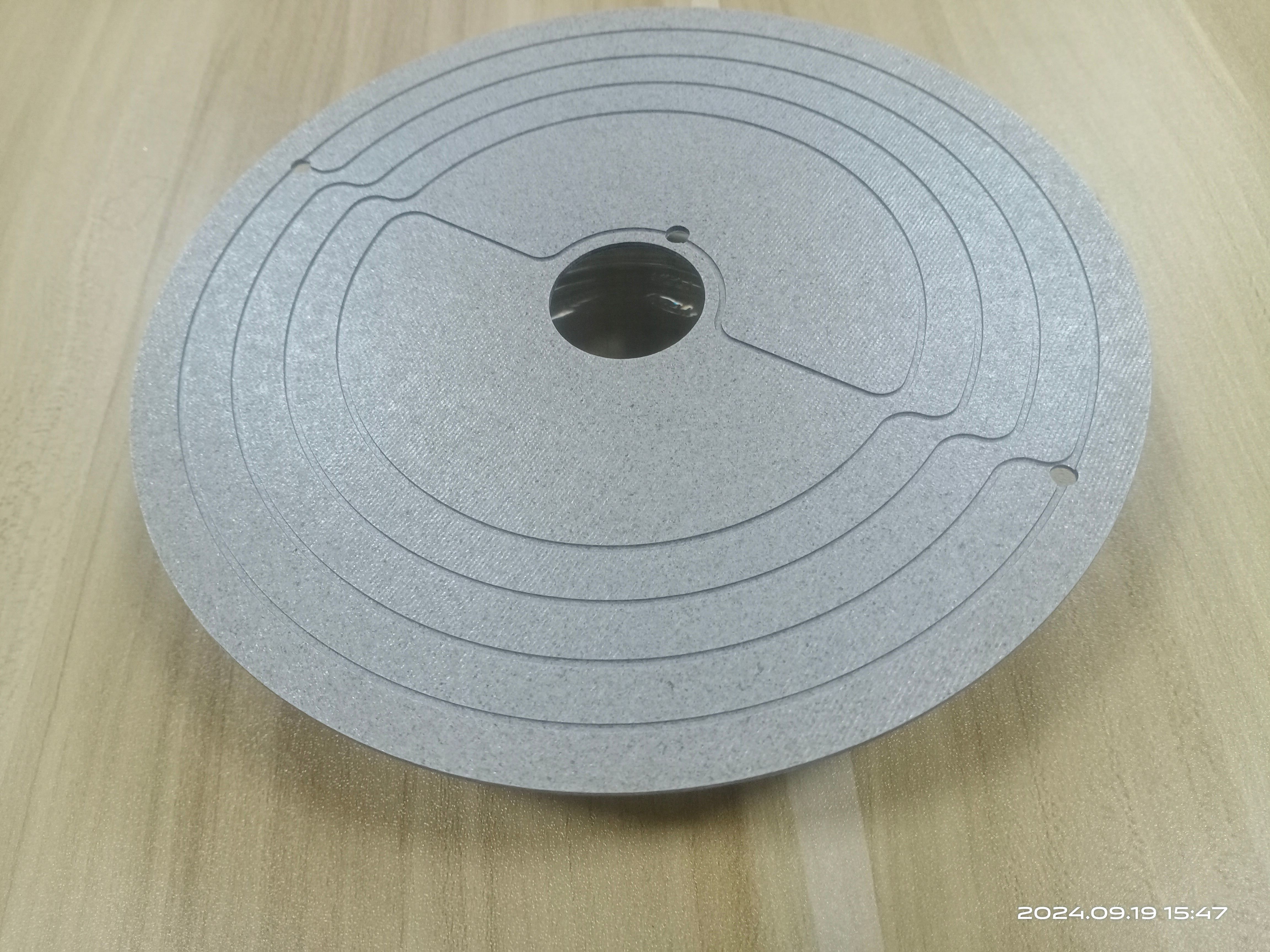

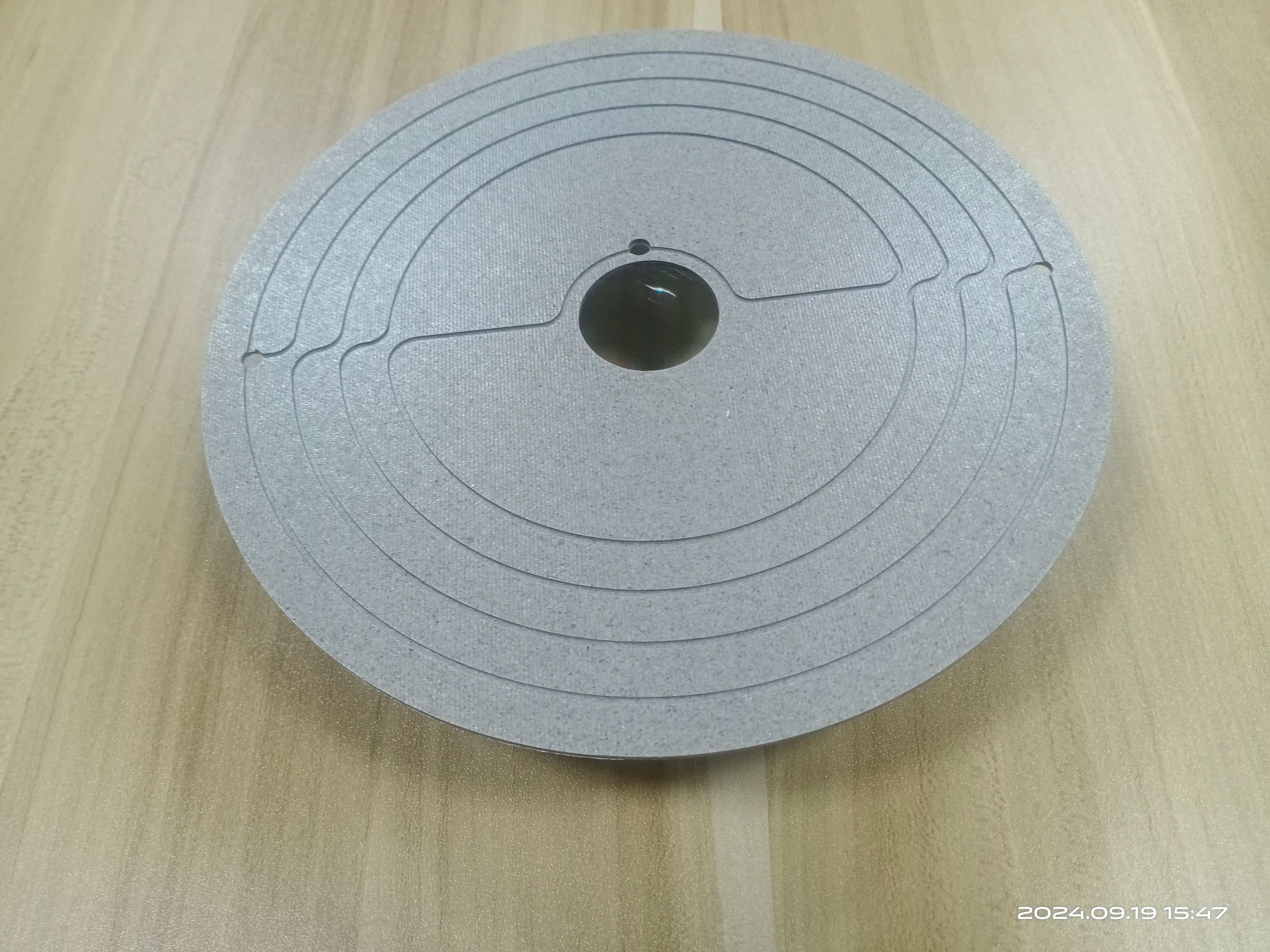

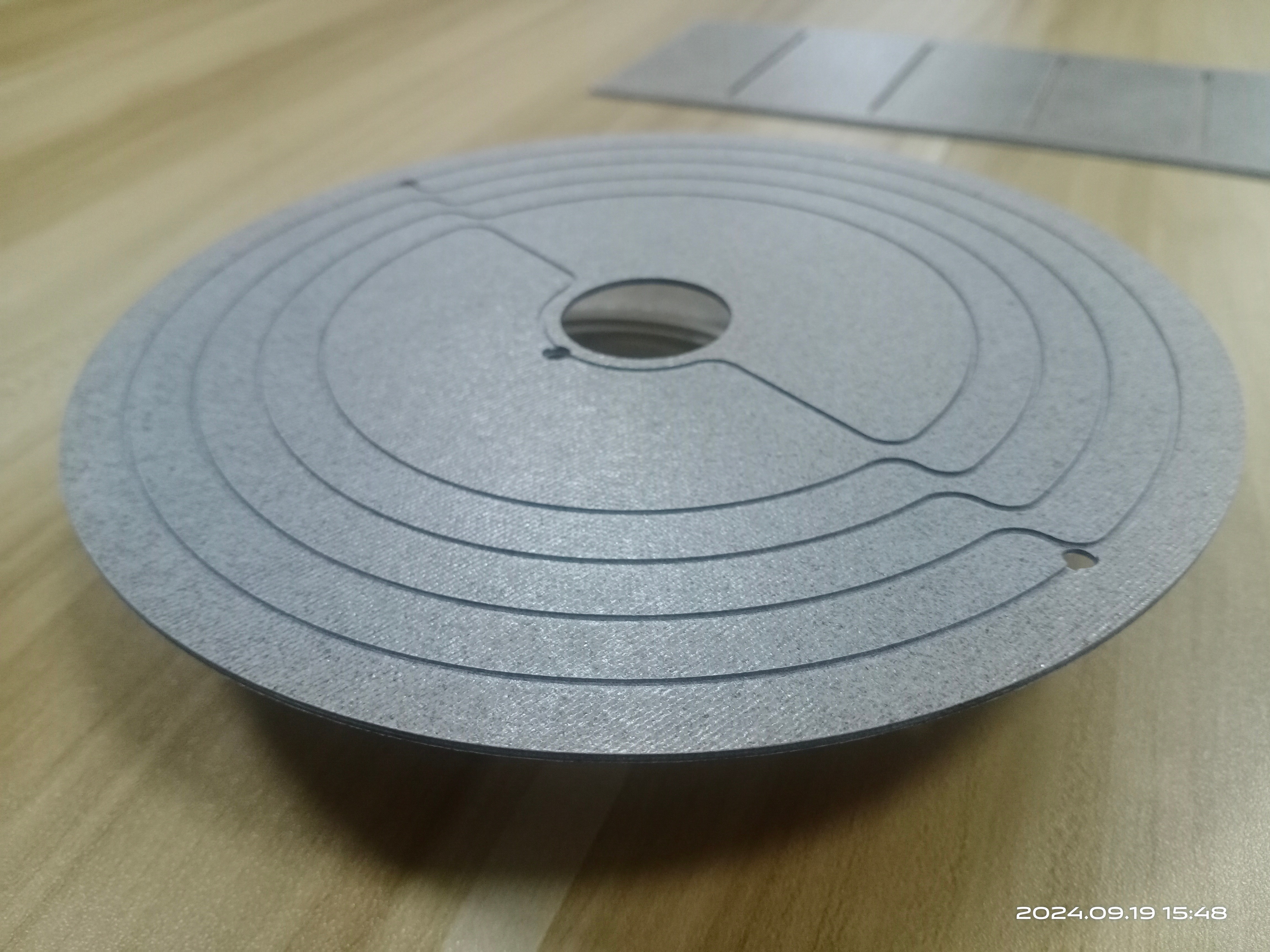

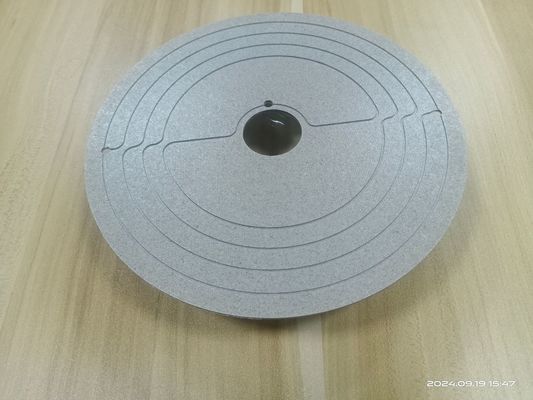

Thermal Insulation Mica Sheet for Circuit Board of Electric Wire Outlets

Thermal insulation mica sheets are critical components used in the circuit boards of electric wire outlets. They provide superior heat management and electrical insulation, ensuring safe and reliable operation in various electrical applications.

Key Properties

1. High Thermal Resistance: Mica can withstand temperatures up to approximately 1000°C (1832°F), making it ideal for environments where heat is generated, such as in electric wire outlets.

2. Excellent Electrical Insulation: Mica sheets feature high dielectric strength, which prevents electrical leakage and protects sensitive circuit board components.

3. Low Thermal Conductivity: This property minimizes heat transfer, ensuring that heat-sensitive components remain protected from adjacent heat sources.

4. Chemical Resistance: Mica is resistant to various chemicals and solvents, enhancing durability in potentially harsh environments.

5. Mechanical Strength: Mica sheets are robust and can withstand mechanical stress, ensuring stability in dynamic applications.

Applications in Electric Wire Outlets

• Insulation Between Components: Mica sheets are used to insulate different components on the circuit board, preventing electrical shorts and enhancing safety.

• Heat Barriers: They act as effective heat barriers, shielding sensitive parts from excessive heat generated during operation.

• Mounting Support: Mica sheets provide stable mounting surfaces for electrical components, enhancing both thermal management and mechanical support.

• Protection Against Environmental Factors: Mica’s properties help protect circuit boards from moisture and chemical exposure, contributing to the longevity and reliability of electric wire outlets.

Considerations for Use

• Thickness and Size: Select the appropriate thickness and dimensions of mica sheets based on the specific design requirements of the electric wire outlet.

• Temperature Ratings: Ensure that the mica material can handle the maximum temperatures expected during operation.

• Installation: Proper installation is essential to maximize the effectiveness of the thermal insulation and ensure the longevity of the circuit board components.

Thermal insulation mica sheets are vital for ensuring the safe and efficient operation of circuit boards in electric wire outlets. Their high thermal resistance, excellent electrical insulation, and durability make them an ideal choice for enhancing the performance and reliability of electrical devices. By incorporating mica sheets, manufacturers can improve the overall safety and efficiency of their products.

TDS

Mica insulation Plate: Muscovite or Phlogopite

High temperature resistance: 750-830 degrees

Thermal conductivity less than 0.4 WmK, hight di-electric performance

Water Absorption: less than1.5%, excellent water proof performance

YT MICA fully implement the ISO 9001-2015 quality system operation,as a stan- dardization of internal management,strengthen the system building an important measure.A strict quality control system has been established,from raw materials, processes, finished products inspection,to ensure that every link in the production process is strictly in accordance with the standards for testing.

YT Mica has equipped with various fire-resistant testing devices and can assist customers in developing fire-resistant cable products according to different standards of various countries, providing one-stop solution service.

1. According to different requirements, we have compiled a total of 64 testing items for mica products, including physical properties, electrical properties, thermal properties, aging properties, and flame retardant properties, which basically cover all the requirements for mica performance testing;

2. At present, YT MICA is capable to detect 50 items of the testings and provide theoretical support quickly for different application scenarios of mica products.

Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.

YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.

high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.

System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate

YT Mica has a dedicated R&D department working on innovations and the development of your projects. It is our longstanding experience with processing natural mica that allows us to provide tailor-made solutions for our end customers. Our product development and application engineering specialists will be in close cooperation with our customers to identify their needs and meet their specific requirements. If we don't have an immediate solution for you, our R&D department will work with you to develop and deliver the best possible solution that will meet your needs.

We have invested and developed expertise in machining, drilling, cutting, sawing and punching, thermal pressing/stamping our products to provide the best solutions to our customers. From our home made mica sheets we can manufacture pieces according to your technical specifications.
