PPD Embossed Tape / YT MICA Product ID PPDYHD / White Color PPD

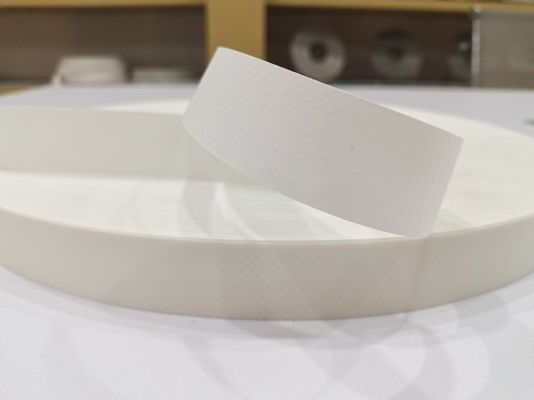

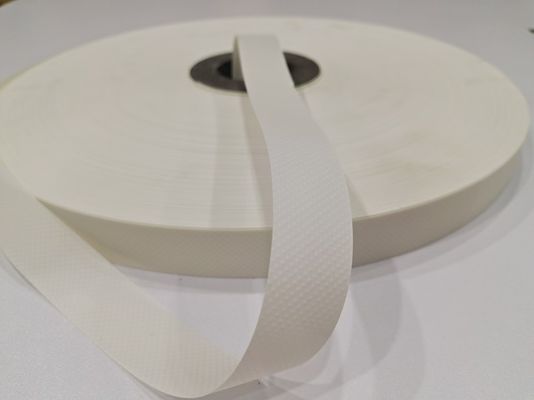

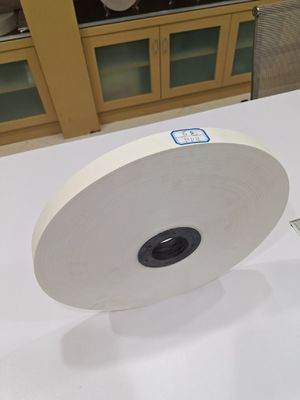

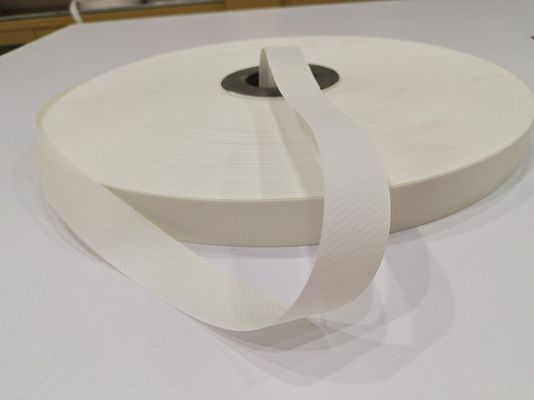

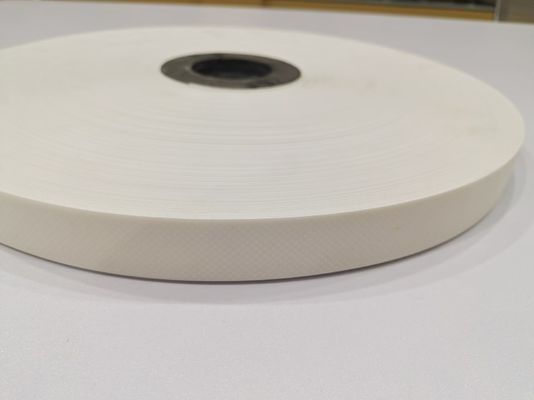

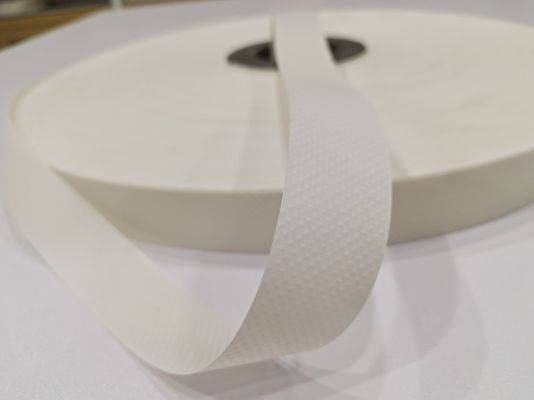

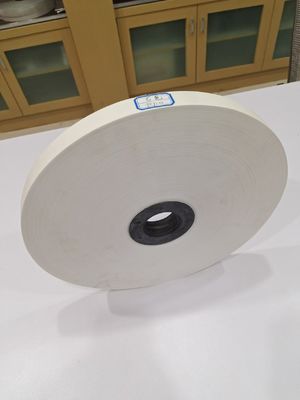

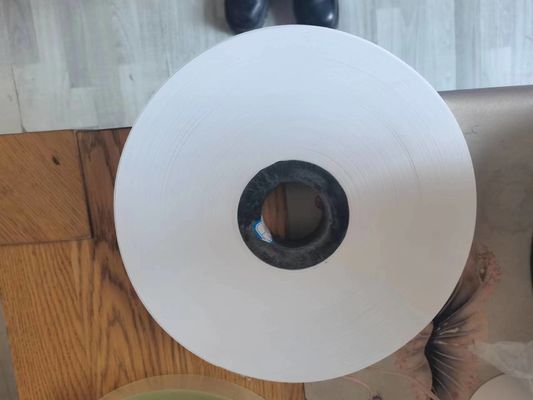

PPD Embossed tape
Product ID PPDYHD
PPD embossed tape has good tensile strength and elongation. After the embossing process, it is not easy to slip and fall off during high-speed wrapping. Its light specific gravity can effectively reduce costs. A good alternative to PVC wrapping tape.
According to different quality, it is divided into two qualities: white and black.
Mainly used as cushion for armored cables
The product is made of polypropylene and polyethylene as raw materials, cast and extruded, embossed, and then cut into strips.
| |
Standard |
Unit |
Standard |
| Outward appearance |
The winding is tight and not loose, and the surface is neat. |
/ |
Visual inspection |
| Thickness |
(0.2-0.6) ±0.02 |
mm |
micrometer |
| Width |
±1.5 |
mm |
Vernier caliper |
| density |
≤1.55 |
g/cm³ |
GB/T 1033.1—2008 |
| Tensile Strength |
≥8 |
MPa |
GB/T 1040.3-2006 |
| Elongation |
≥50 |
% |
GB/T 1040.3-2006 |
| Environmental performance |
Standard |
Unit |
Standard |
|
RoHS
|
(Cd) |
≤100 |
mg/kg |
IEC 62321 |
| (Pb) |
≤1000 |
mg/kg |
IEC 62321 |
| (Hg) |
≤1000 |
mg/kg |
IEC 62321 |
| (Cr(VI)) |
≤1000 |
mg/kg |
IEC 62321 |
| (PBBs) |
≤1000 |
mg/kg |
IEC 62321 |
| (PBDEs) |
≤1000 |
mg/kg |
IEC 62321 |
| (DBP) |
≤1000 |
mg/kg |
IEC 62321 |
| (BBP) |
≤1000 |
mg/kg |
IEC 62321 |
| (DEHP) |
≤1000 |
mg/kg |
IEC 62321 |
| (DIBP) |
≤1000 |
mg/kg |
IEC 62321 |
Mainly used as a cushion layer for armored cables
FAQ
What are your main products?
1,YT MICA is engaged in the R&D, production, sales and service of fire resistant materials and accessory for cables and wires, high-clean materials, flame-retardant materials and other technologies, providing industry users with solutions based on "fire-resistant, flame-retardant, low-smoke and halogen-free". We provide ire resistant materials and accessory for cables and wires.
2.What about the product quality and which certificate do you have?
We have IATF16949,IS09001,1S014001 and ROHS certificate. We have strict quality control management system. Proceed Volume production exactly according to the approved sample quality and the technical data sheet requested by customer. We control internally every step of IQC,IPQC,OQC.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate
Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.
YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.
high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.
