Fiberglass Tape For Cables / YT Mica Product ID number BXD

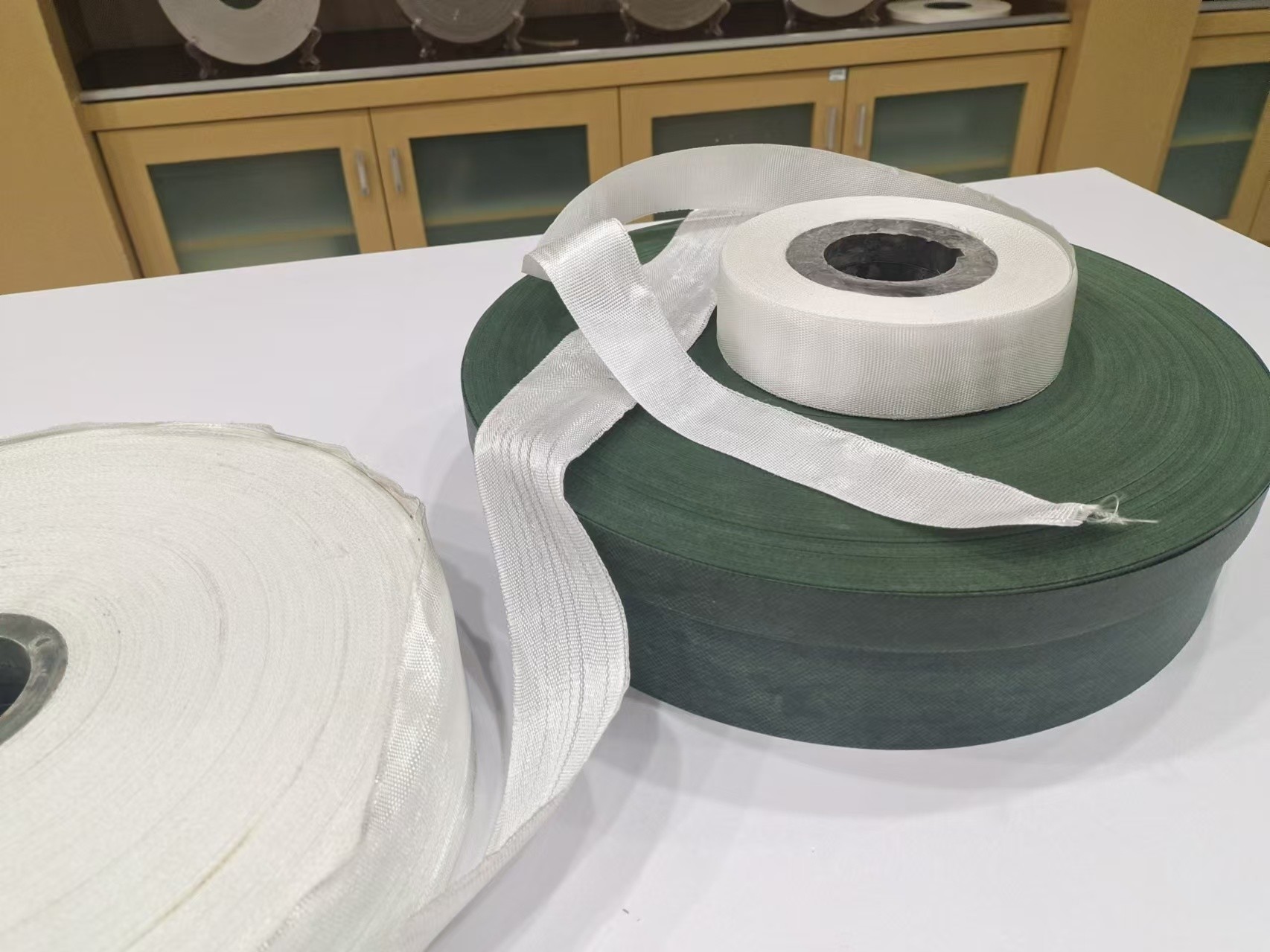

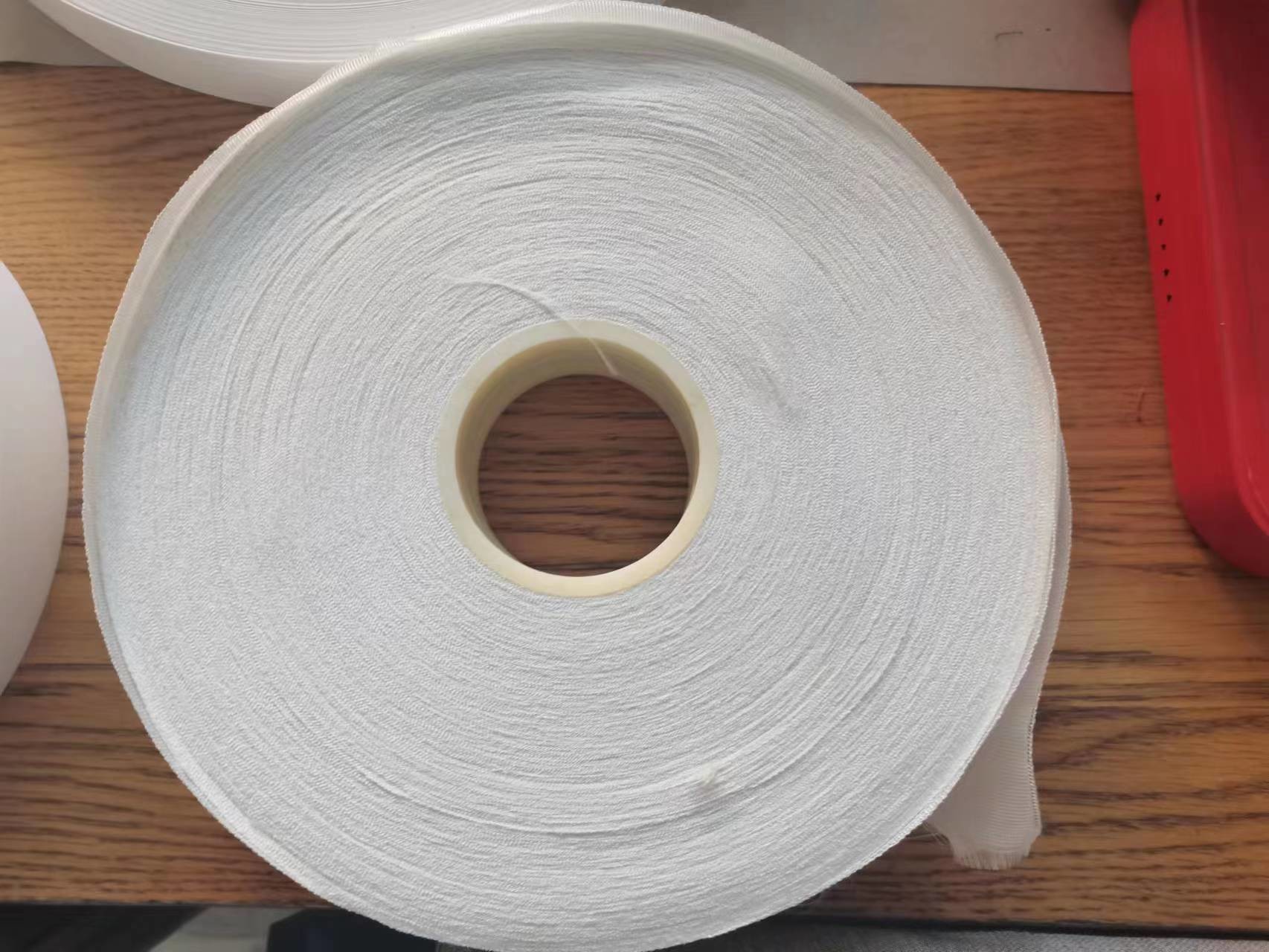

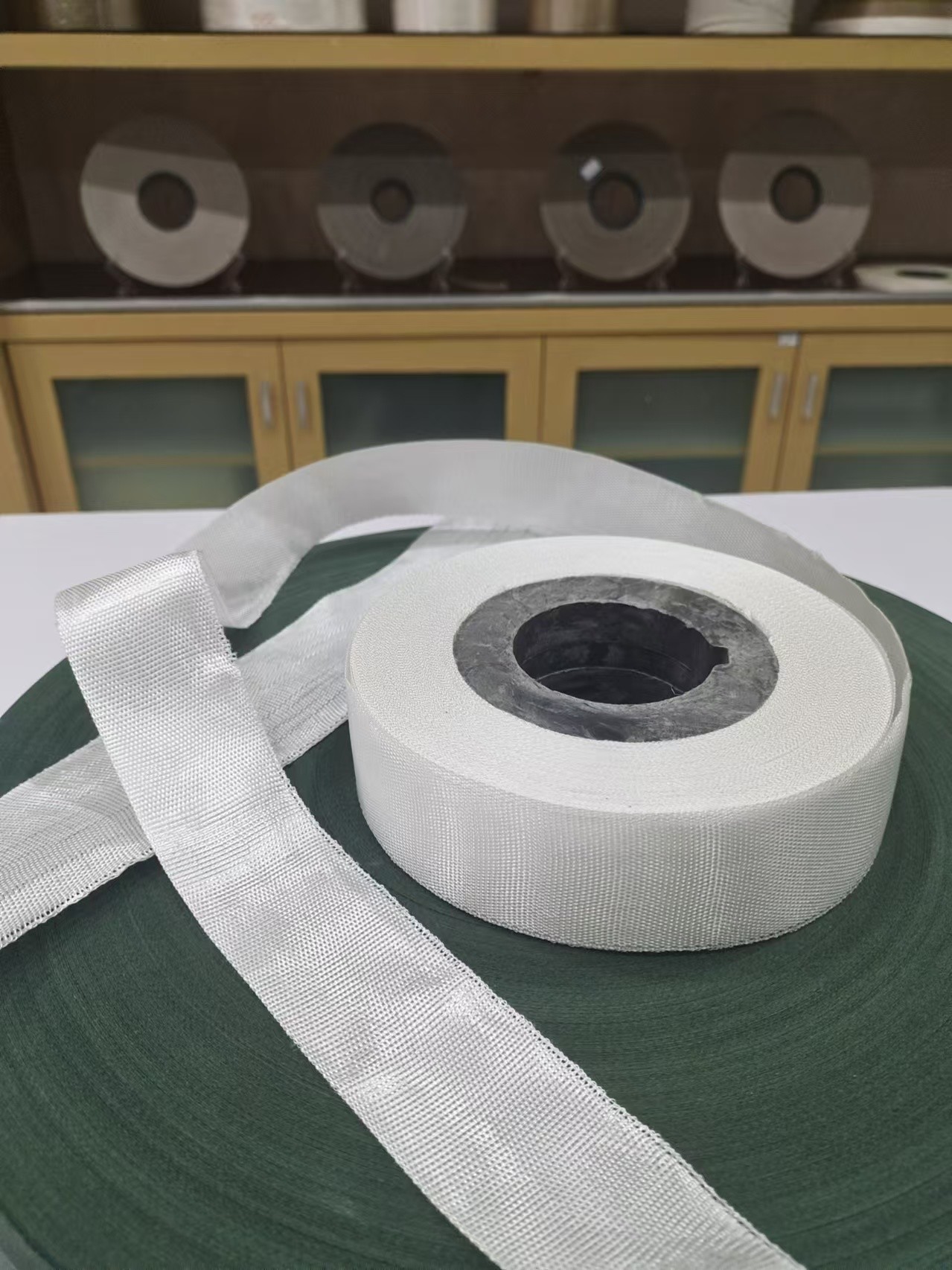

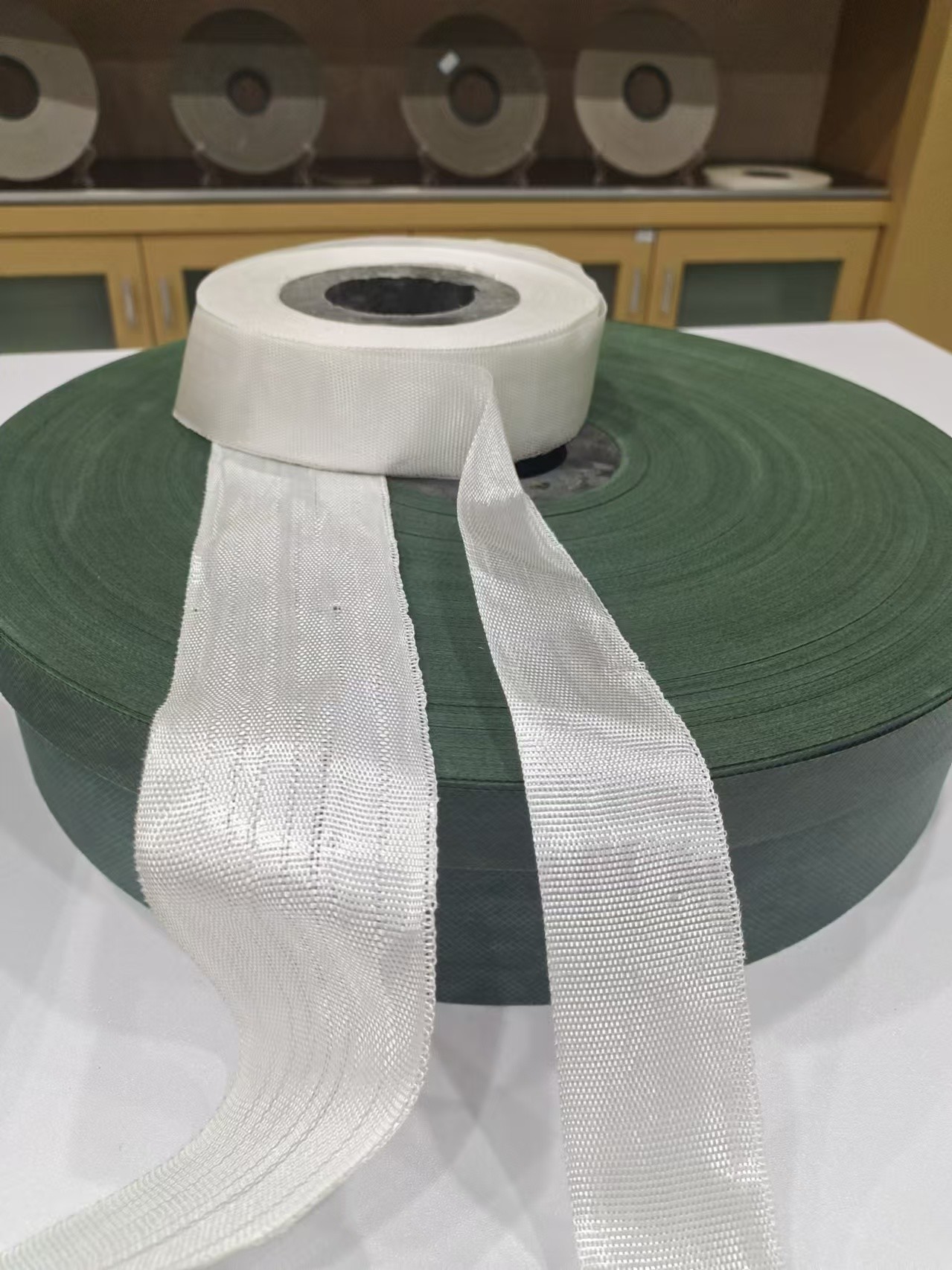

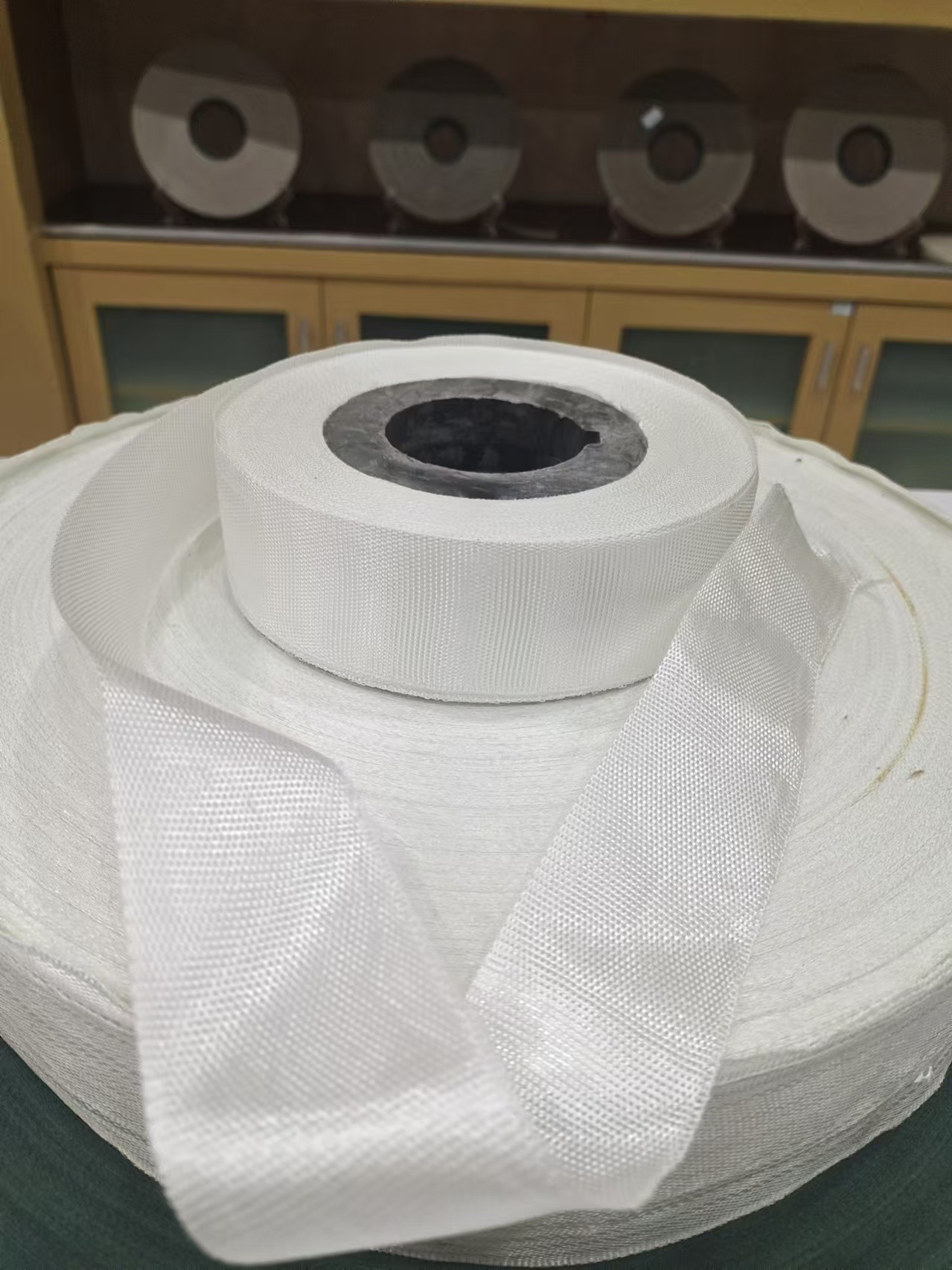

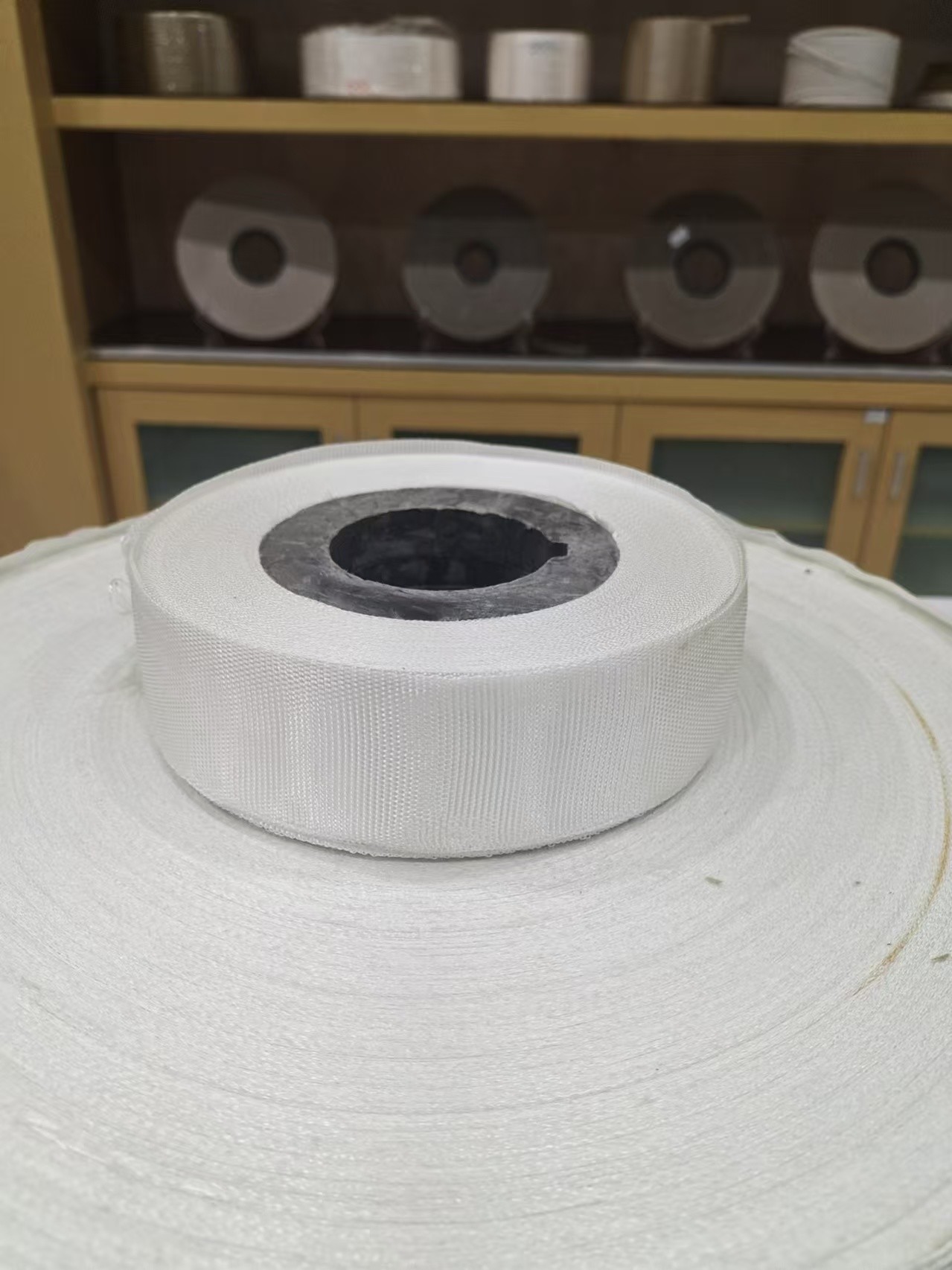

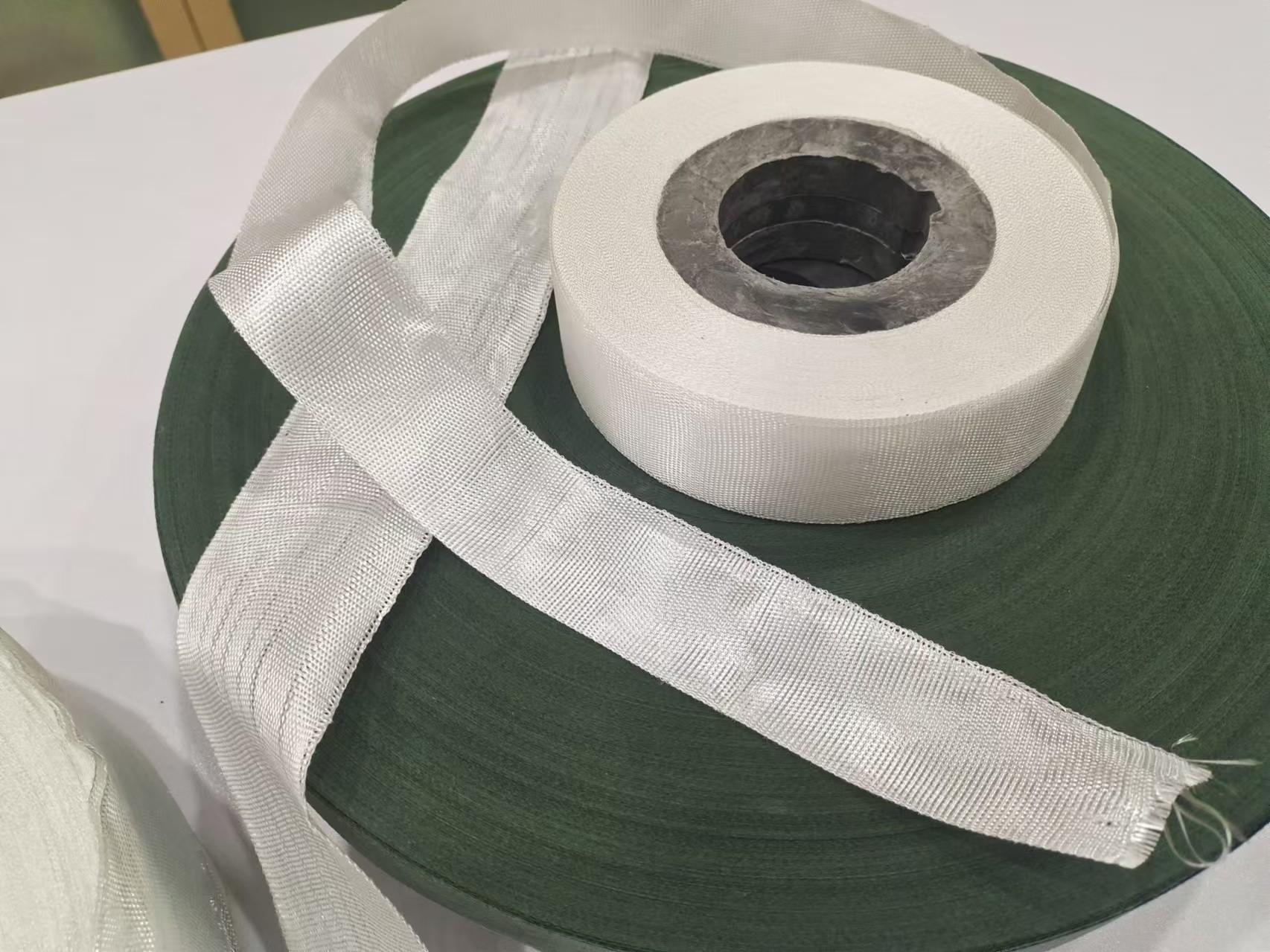

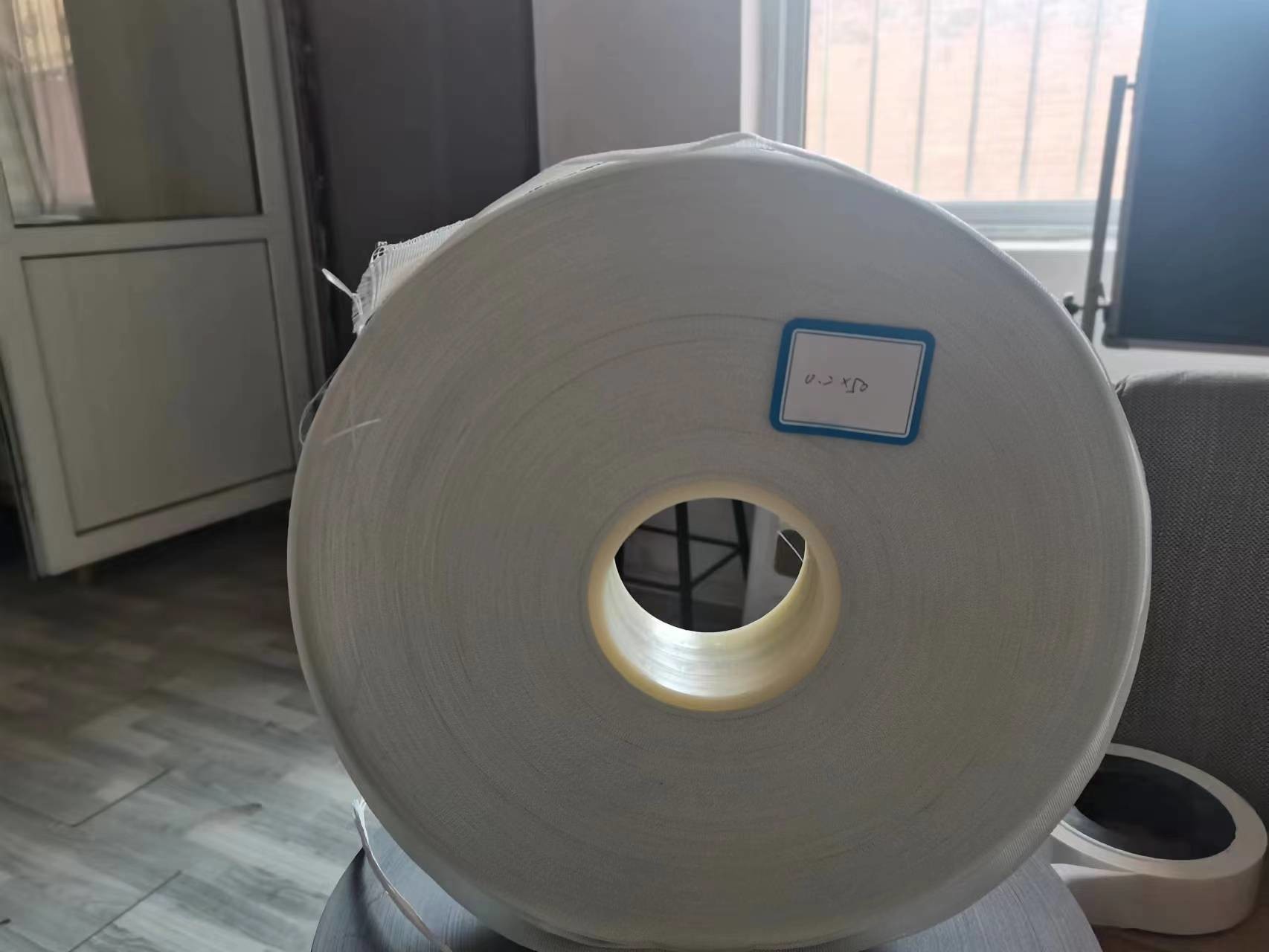

Fiberglass Tape
Fiberglass tape is a durable and versatile material often used in various applications, particularly for insulating and protecting cables. Here are some key points about fiberglass tape for cables:
Properties
- Material: Made from woven or non-woven fiberglass, which provides excellent strength and heat resistance.
- Insulation: Typically has good electrical insulation properties, making it suitable for electrical applications.
- Temperature Resistance: Can withstand high temperatures, often up to several hundred degrees Fahrenheit, depending on the specific type.
Uses
- Cable Insulation: Used to wrap and insulate cables in electrical and electronic applications, providing a barrier against heat and electrical interference.
- Reinforcement: Often used to reinforce cable assemblies, improving durability and resistance to wear and tear.
- Protection: Provides protection against abrasion, moisture, and chemicals in harsh environments, such as industrial settings.
Considerations
- Application: Ensure that the tape is applied evenly and tightly to maximize insulation and protection.
- Width and Thickness: Available in various widths and thicknesses; choose based on the specific application and cable size.
- Compatibility: Check compatibility with other materials in the cable assembly to avoid chemical reactions or degradation.
Product ID- BXD
The common characteristics of glass fiber tapes include high temperature resistance, flame resistance, halogen-free, low smoke, light specific gravity, high tensile strength, and smooth wrapping effect. Stable chemical properties, acid and alkali resistance, aging resistance; excellent environmental performance, does not contain toxic and harmful components, and does not produce toxic gases at high temperatures.
It can be widely used in halogen-free and low-smoke, fire insulation (oxygen), flame-retardant cables, mining cables, etc.

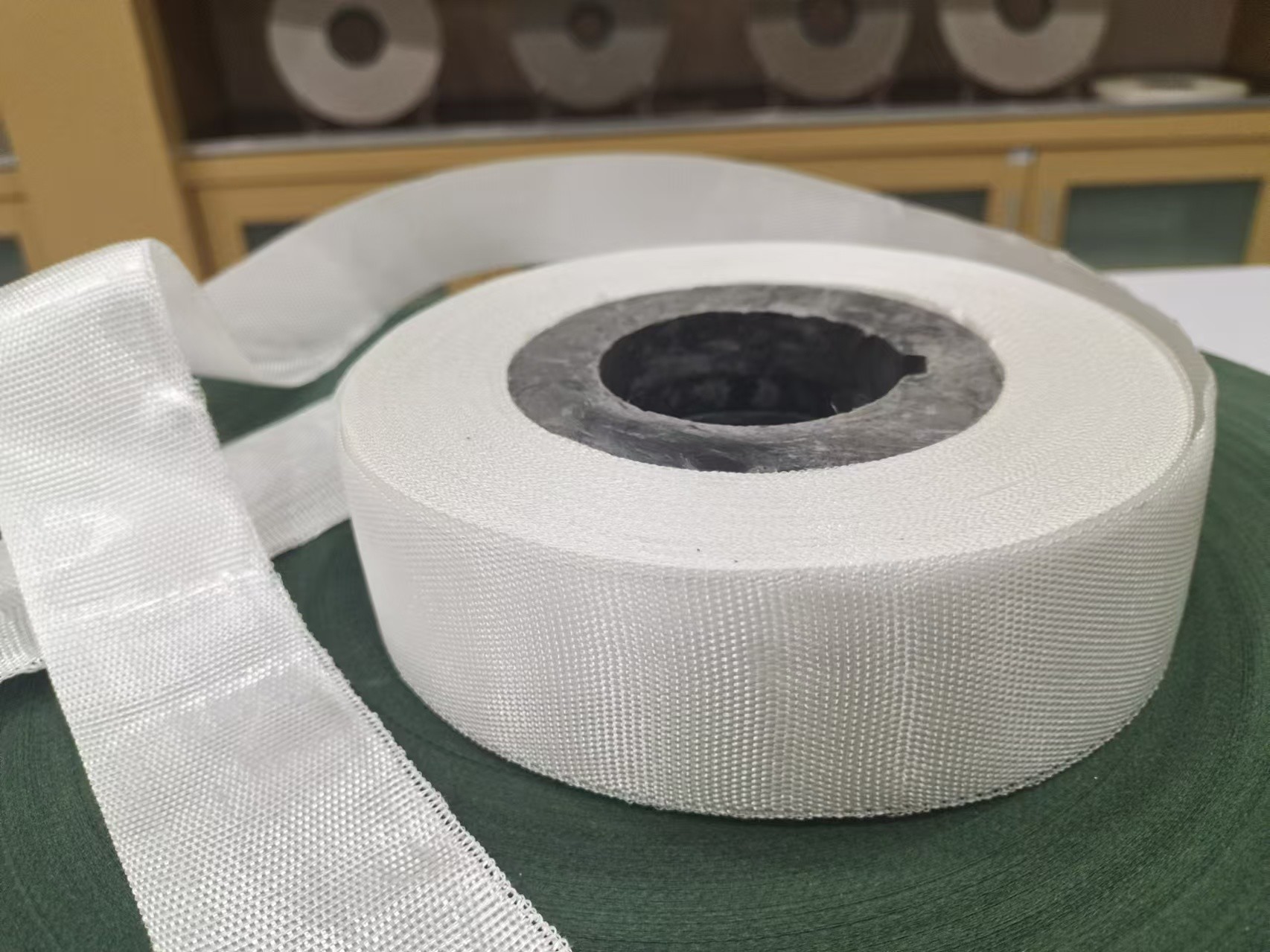

The product is a ribbon-shaped product made of glass fiber yarn as raw material and woven by a high-speed ribbon loom.
| Performance |
Data |
Unit |
Standard Test
|
| Appearance |
The weaving should be even and free of holes, wrong wefts, broken warps, inclusions and other mechanical impurities. |
/ |
Visual inspection |
|
Thickness
|
0.2±0.02 |
mm |
Micrometer
|
|
Width
|
≤30±1.5
≥35±2.0
|
mm |
Vernier Caliper
|
| Quantitative |
220±20 |
g/㎡ |
Accuracy 0.001g balance weighing |
| Tensile Strength |
≥875 |
N/25mm |
GB/T 7689.5-2013 |
|
Oxygen Index
|
≥80 |
% |
GB/T 2406.2—2009 |
|
Smoke Density
|
≤100
|
%
|
GB/T 8627—2007
|
| PH value |
≥4.3 |
/ |
GB/T17650.2—2021 |
| Conductivity of water extract solution (20℃) |
≤15 |
mS/m |
JC/T 170-2012 Appendix B |
|
Environmental performance
|
Data |
Unit |
Standard Test
|
|
RoHS
|
(Cd) |
≤100 |
mg/kg |
IEC 62321 |
| (Pb) |
≤1000 |
mg/kg |
IEC 62321 |
| (Hg) |
≤1000 |
mg/kg |
IEC 62321 |
| (Cr(VI)) |
≤1000 |
mg/kg |
IEC 62321 |
| (PBBs) |
≤1000 |
mg/kg |
IEC 62321 |
| (PBDEs) |
≤1000 |
mg/kg |
IEC 62321 |
| (DBP) |
≤1000 |
mg/kg |
IEC 62321 |
| (BBP) |
≤1000 |
mg/kg |
IEC 62321 |
| (DEHP) |
≤1000 |
mg/kg |
IEC 62321 |
| (DIBP) |
≤1000 |
mg/kg |
IEC 62321 |
FAQ
What are your main products?
1,YT MICA is engaged in the R&D, production, sales and service of fire resistant materials and accessory for cables and wires, high-clean materials, flame-retardant materials and other technologies, providing industry users with solutions based on "fire-resistant, flame-retardant, low-smoke and halogen-free". We provide ire resistant materials and accessory for cables and wires.
2.What about the product quality and which certificate do you have?
We have IATF16949,IS09001,1S014001 and ROHS certificate. We have strict quality control management system. Proceed Volume production exactly according to the approved sample quality and the technical data sheet requested by customer. We control internally every step of IQC,IPQC,OQC.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate
Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.
YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.
high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.
Know more about YT Mica at www.ncnc.cn
