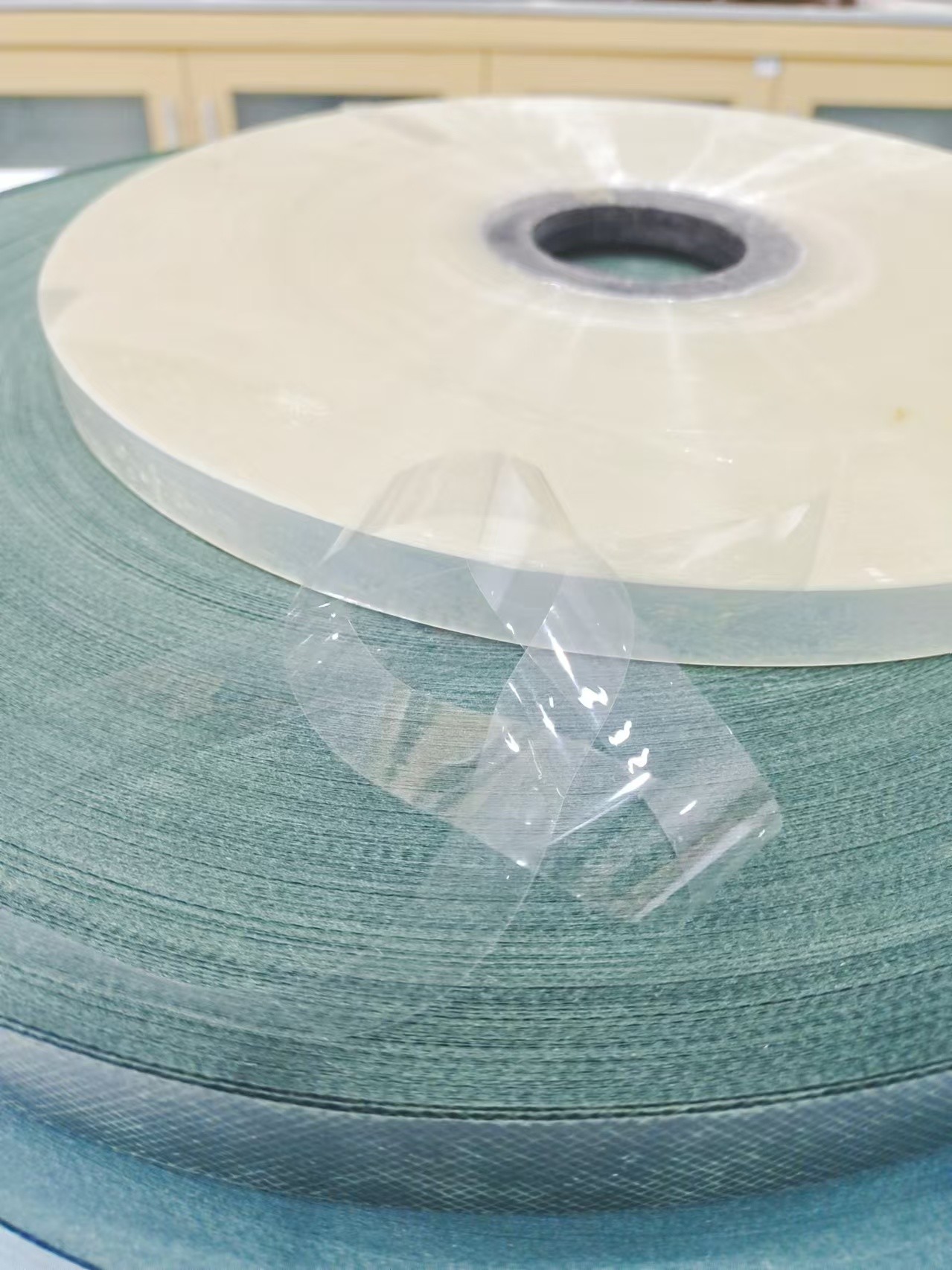

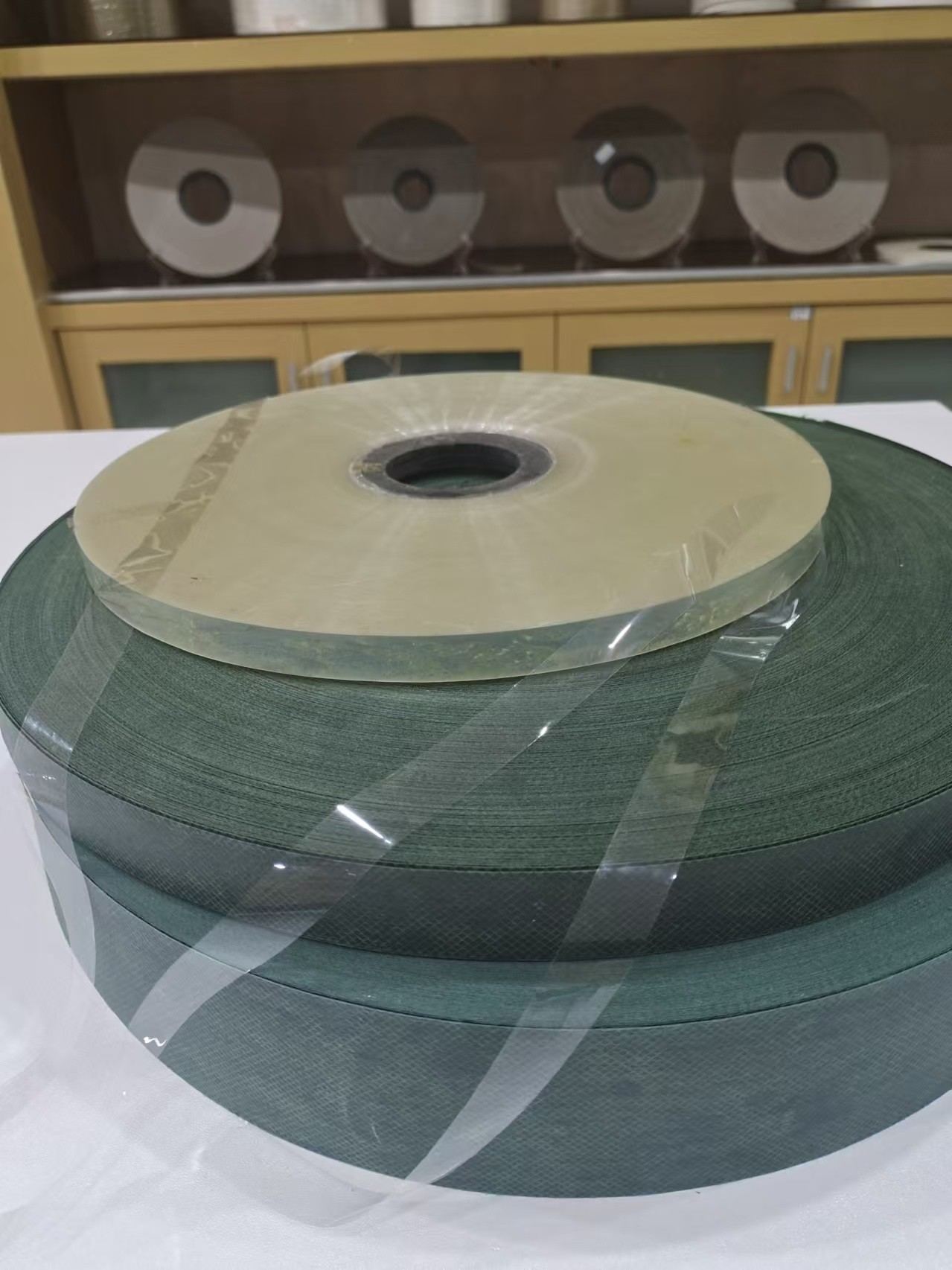

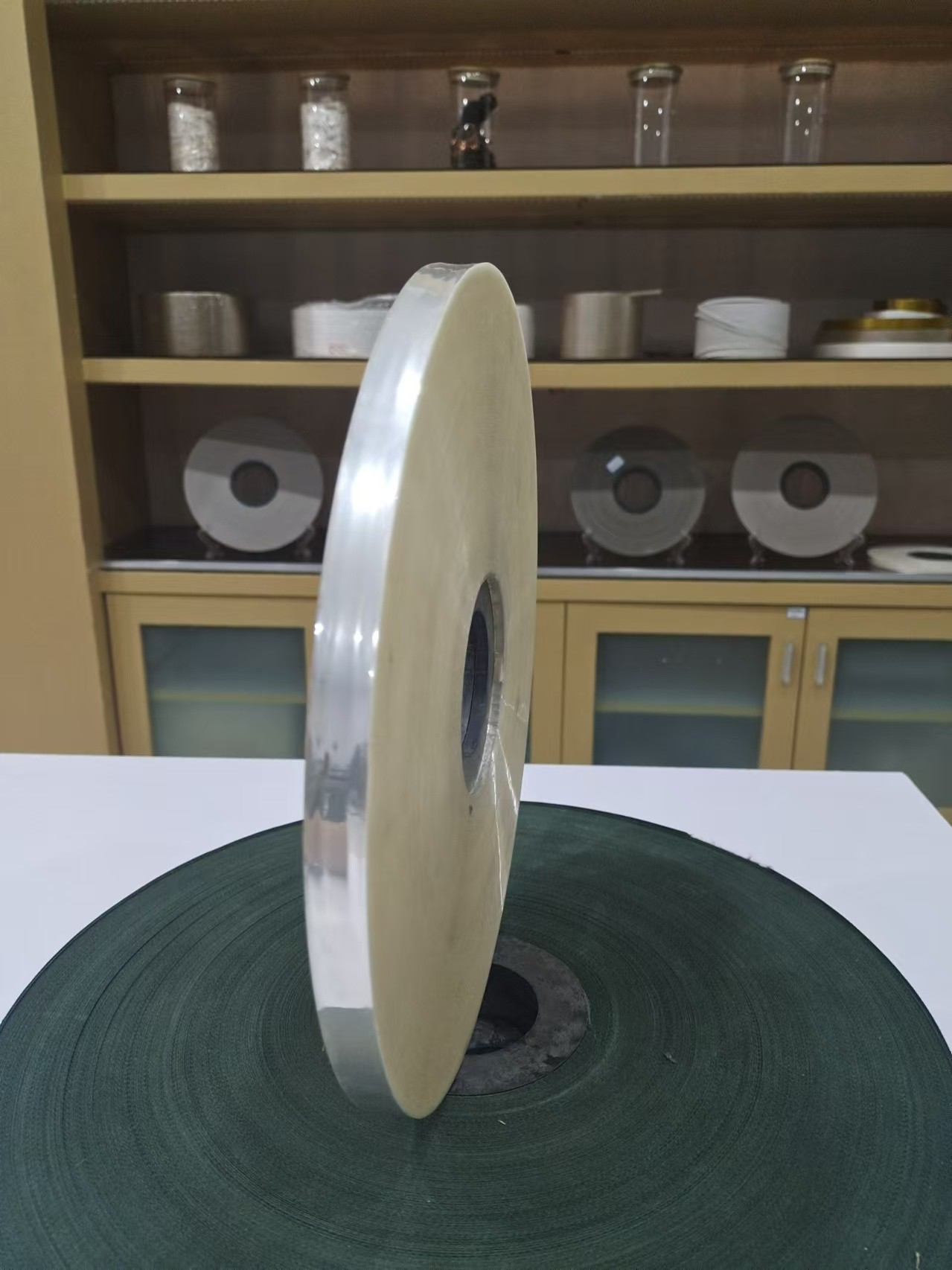

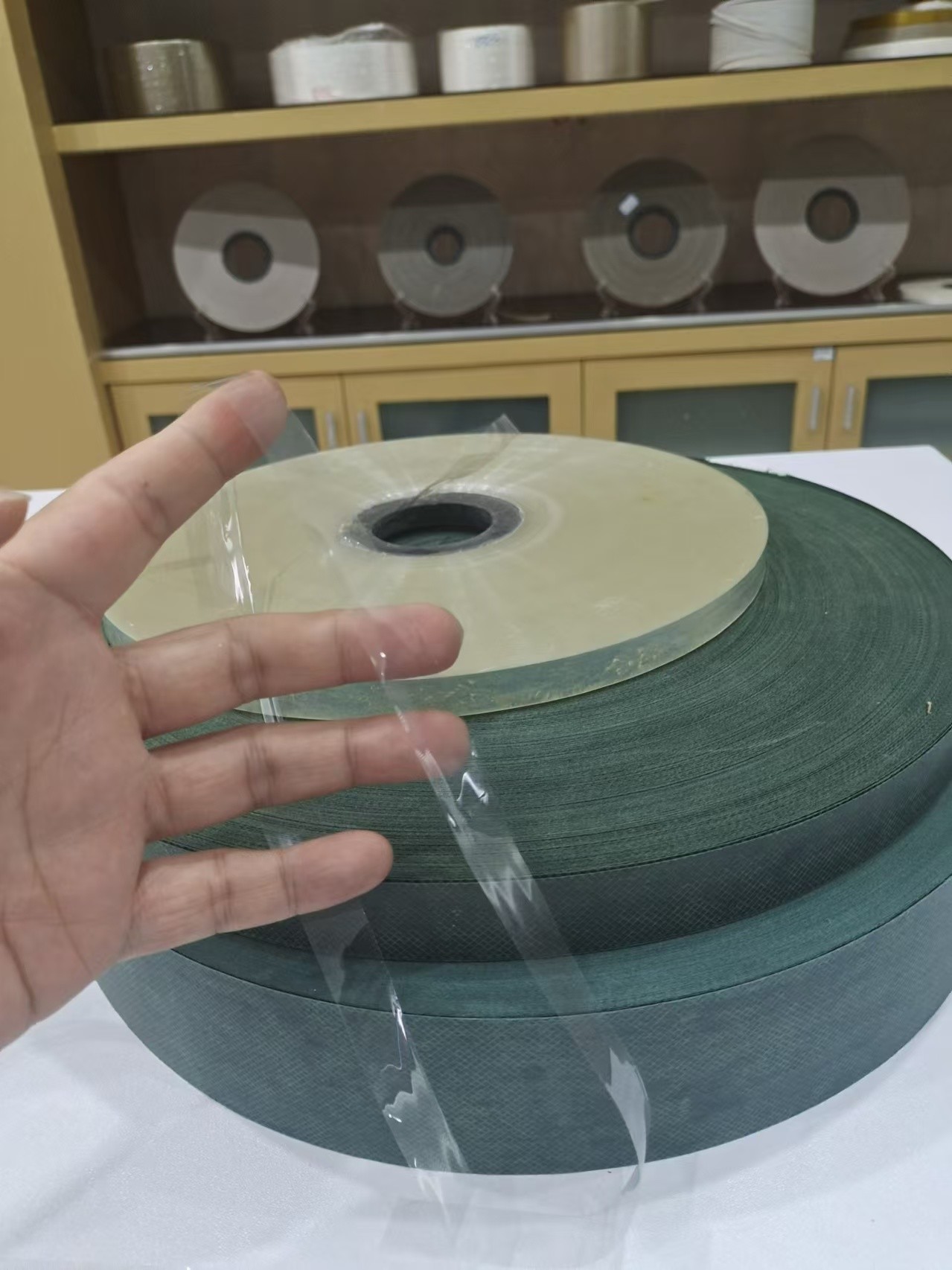

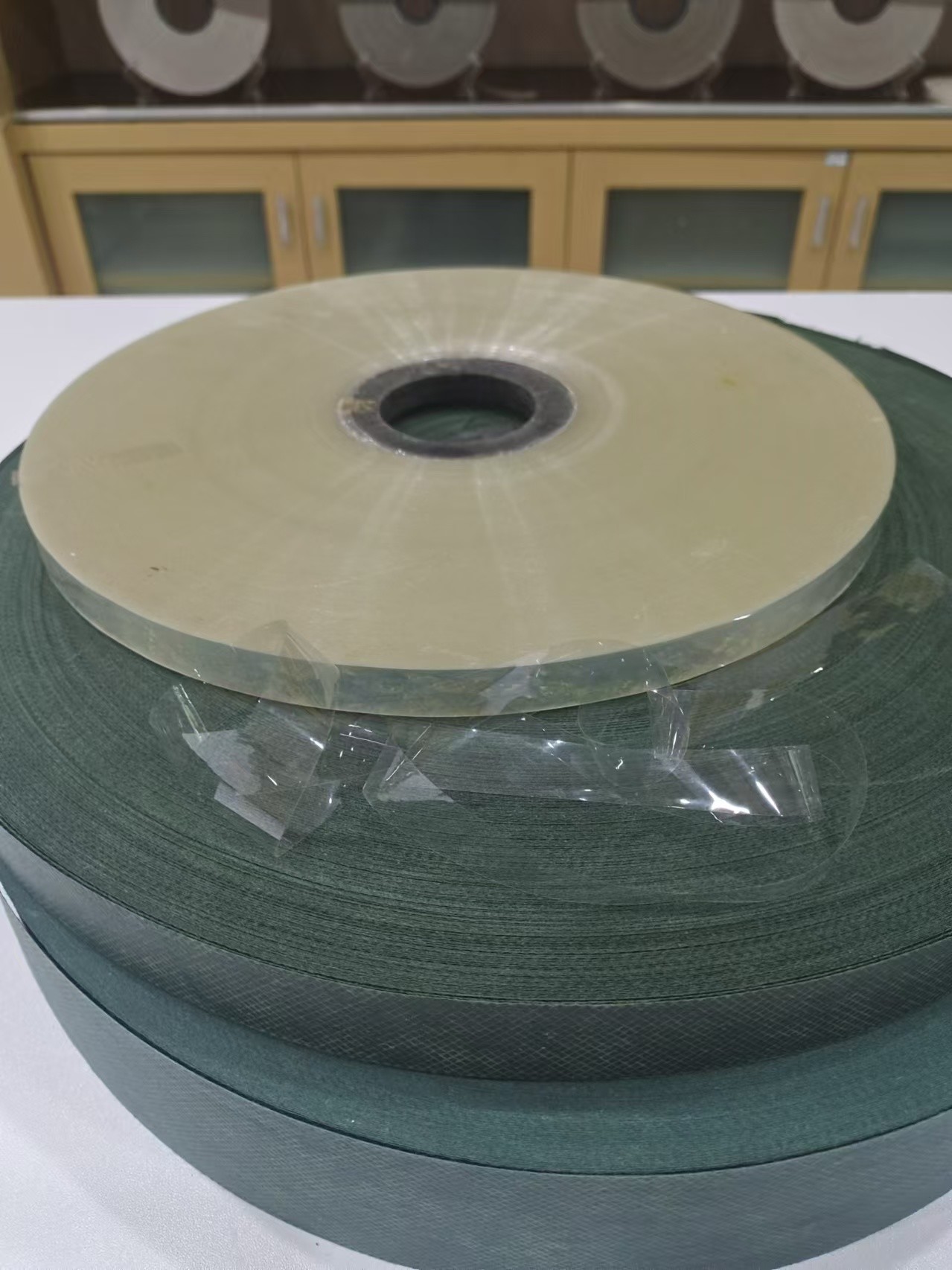

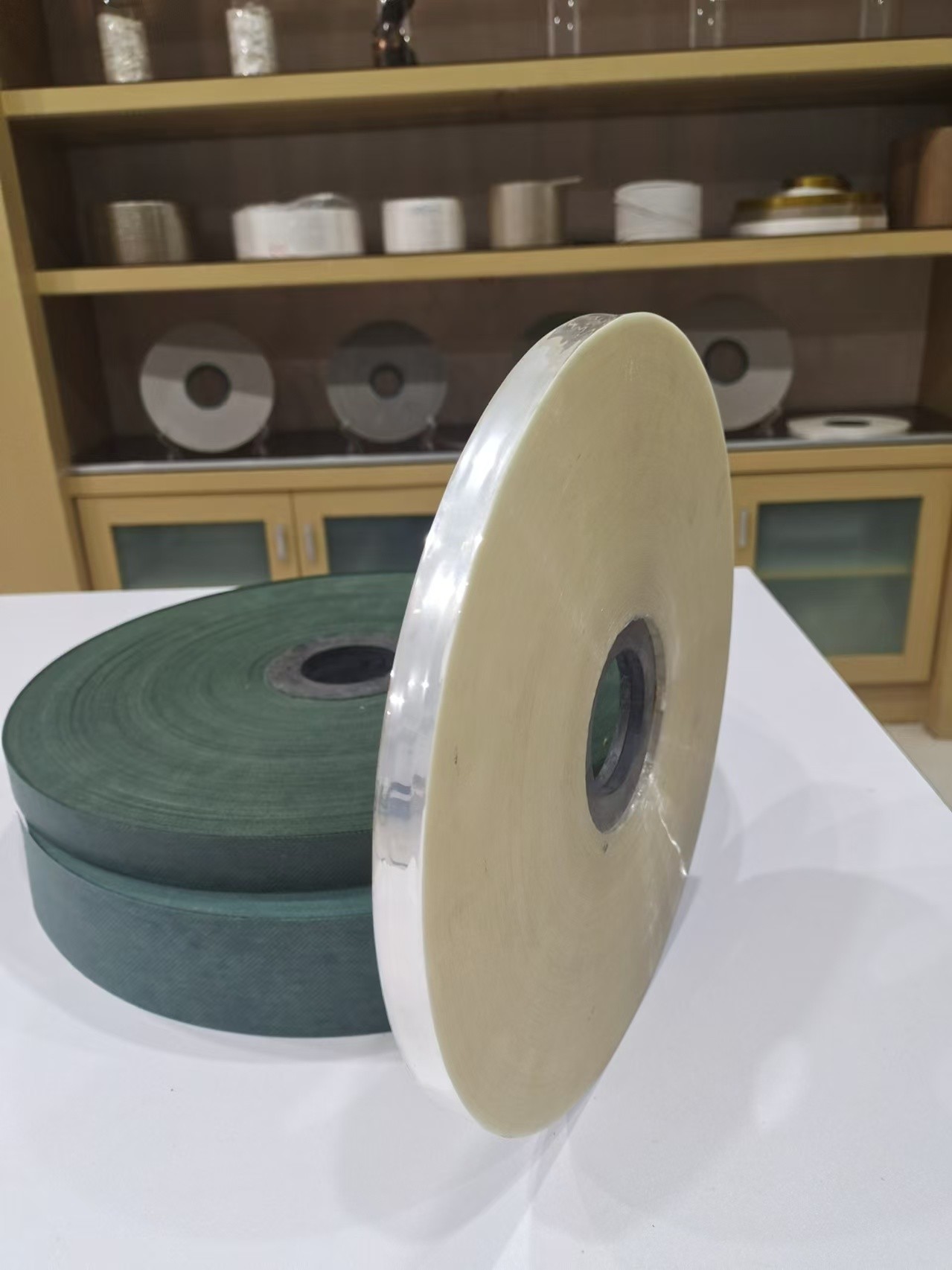

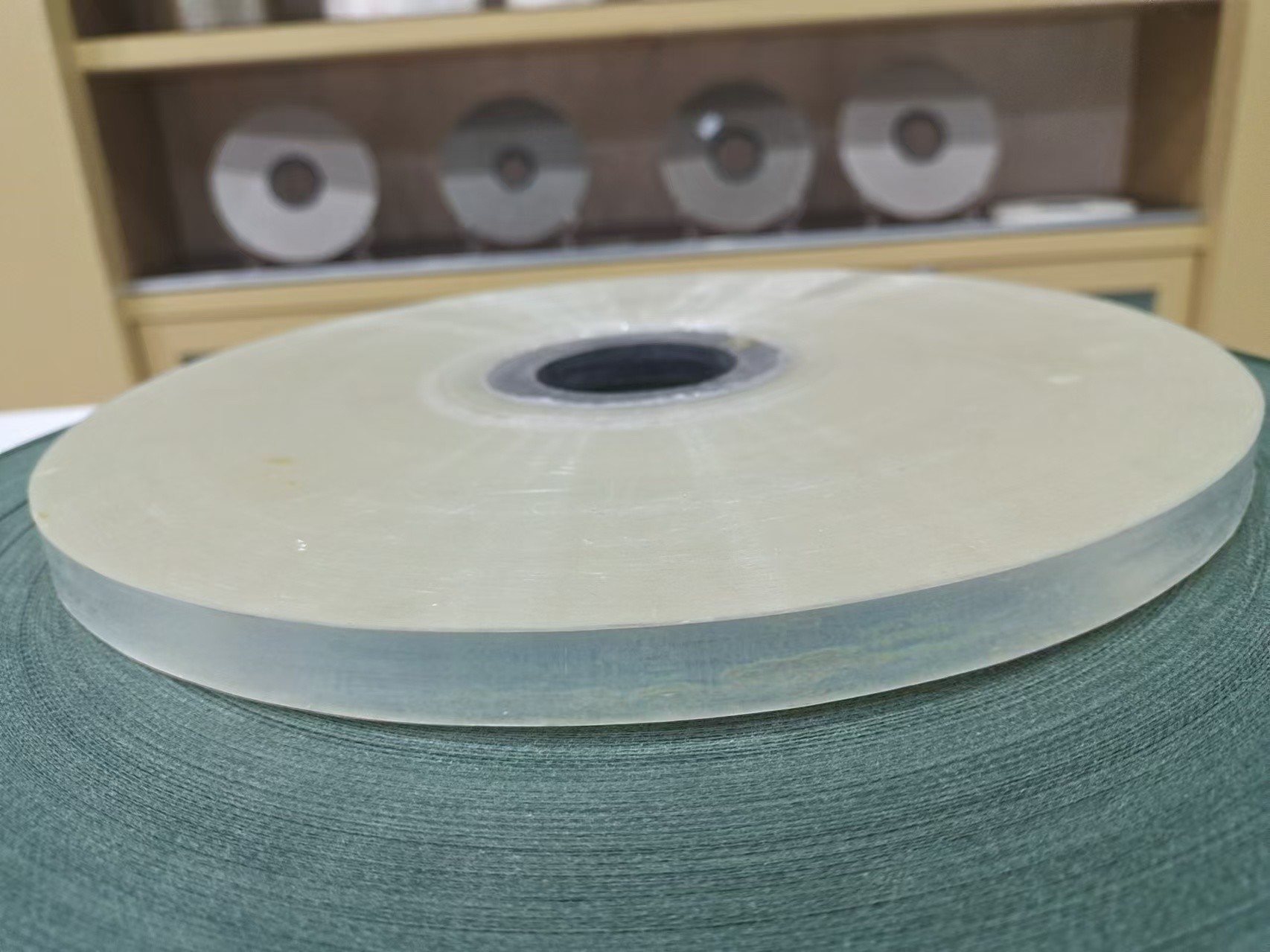

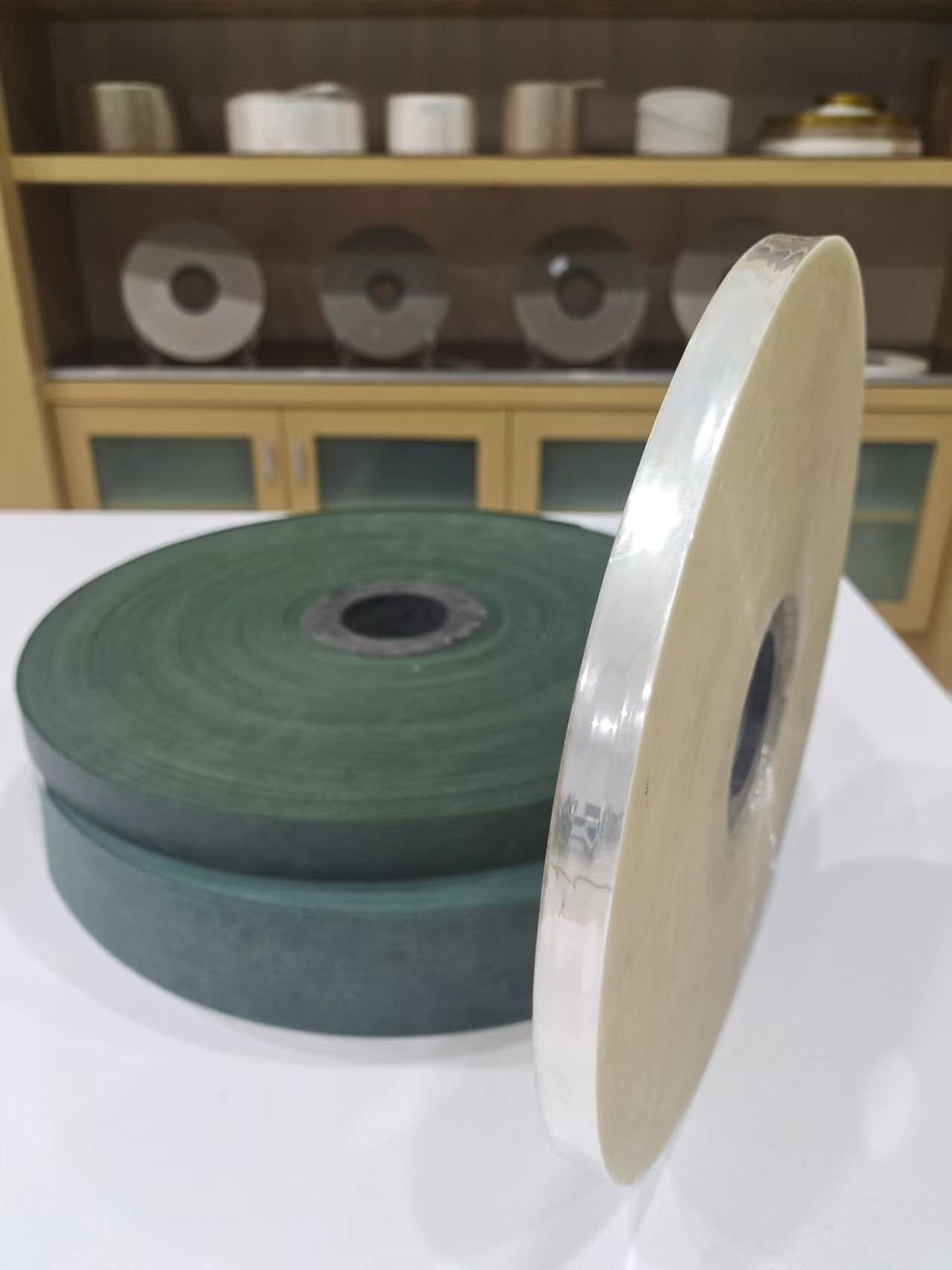

Polyester Tape / PET Tape for Cable and Wires / YT Mica Product ID as JZD / Transparent PET tape
Product ID- JZD
The common characteristics of polyester tapes include high mechanical strength, good insulation properties, puncture resistance, friction resistance, high temperature resistance, and low temperature resistance. They are ideal longitudinal wrapping or wrapping materials.
It can be widely used in the technical requirements of longitudinal wrapping or wrapping of communication cables, control cables, optical cables, power cables, coaxial cables and other special cables.
The product is an electrical insulation material cut from polyester film, we can customized according to your requirements.
| Performance |
Data |
Unit |
Standard Test
|
| Appearance |
The surface of the film should be smooth and clean, and should be free of particles, bubbles, cracks, wrinkles, conductive impurities, and surface dirt (such as oil stains, oil stains). The edges of the film should be neat and undamaged, and should be flat when unfolded. The film should be free of discoloration, brittleness and other aging phenomena. |
/
|
Visual inspection |
| Thickness |
±0.02 |
mm |
Micrometer |
| Width |
±1.0 |
mm |
Vernier Caliper |
| Density |
1.39±0.01 |
g/cm³ |
GB/T 1033.1—2008 |
|
Tensile Strength
|
≥150
|
MPa
|
GB/T 13542.4-2009 No.11
|
| Elongation |
≥80 |
% |
GB/T 13542.4-2009 No.11 |
| Melting Point |
≥256 |
℃ |
IEC61074:1991 |
| Volume resistivity |
≥1.0x1014 |
Ω · m |
GB/T 1410-2006 |
| surface resistivity |
≥1.0x1013 |
Ω |
GB/T 1410-2006 |
| Environmental performance |
Data |
Unit |
Standard Test
|
|
RoHS
|
(Cd) |
≤100 |
mg/kg |
IEC 62321 |
| (Pb) |
≤1000 |
mg/kg |
IEC 62321 |
| (Hg) |
≤1000 |
mg/kg |
IEC 62321 |
| (Cr(VI)) |
≤1000 |
mg/kg |
IEC 62321 |
| (PBBs) |
≤1000 |
mg/kg |
IEC 62321 |
| (PBDEs) |
≤1000 |
mg/kg |
IEC 62321 |
| (DBP) |
≤1000 |
mg/kg |
IEC 62321 |
| (BBP) |
≤1000 |
mg/kg |
IEC 62321 |
| (DEHP) |
≤1000 |
mg/kg |
IEC 62321 |
| (DIBP) |
≤1000 |
mg/kg |
IEC 62321 |
| |
FAQ
What are your main products?
1,YT MICA is engaged in the R&D, production, sales and service of fire resistant materials and accessory for cables and wires, high-clean materials, flame-retardant materials and other technologies, providing industry users with solutions based on "fire-resistant, flame-retardant, low-smoke and halogen-free". We provide ire resistant materials and accessory for cables and wires.
2.What about the product quality and which certificate do you have?
We have IATF16949,IS09001,1S014001 and ROHS certificate. We have strict quality control management system. Proceed Volume production exactly according to the approved sample quality and the technical data sheet requested by customer. We control internally every step of IQC,IPQC,OQC.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate
Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.
YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.
high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.
