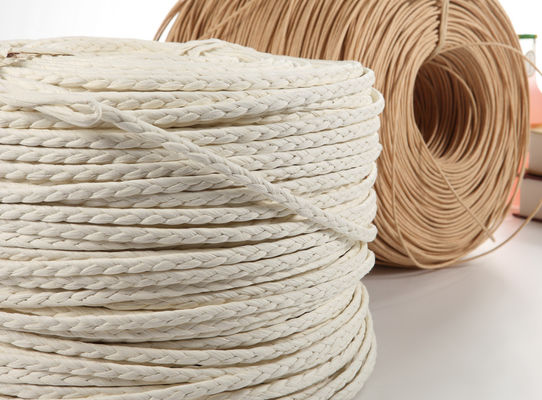

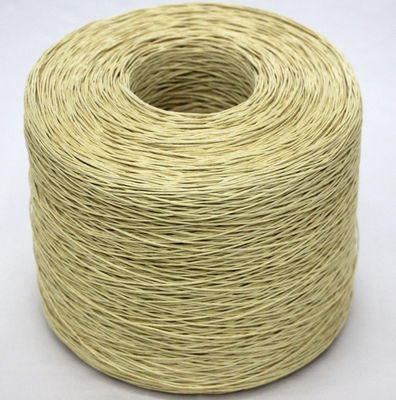

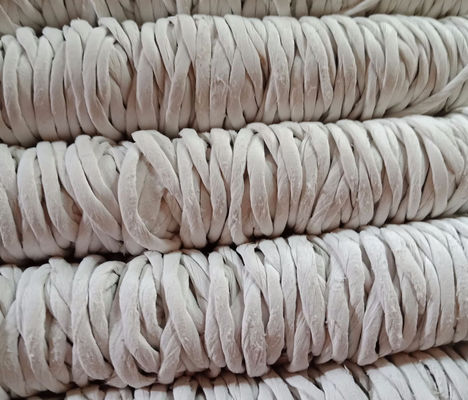

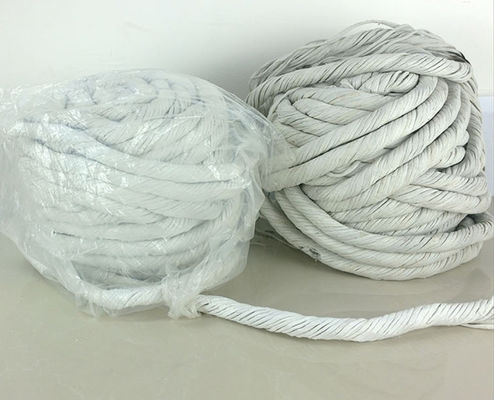

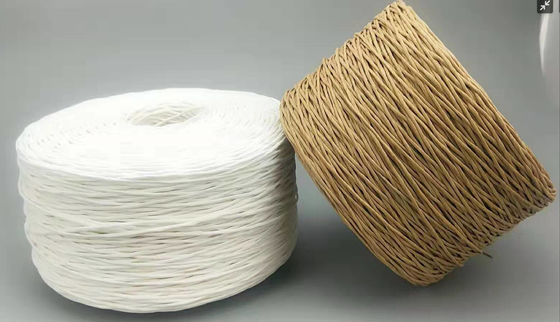

Rock Wool Rope / Inorganic Paper Rope For Cables And Wires
YT Mica Product ID- YMS
The common characteristics of rock wool rope include flame retardant, fire resistance, high temperature resistance, flame resistance, halogen-free, non-smoke and other characteristics.
It is suitable for 0.6/1kv, 3.6/35kv flame retardant class A, class B XLPE insulated power cables, 0.6/1kv, 3.6/35kv low-smoke halogen-free power cables, 450v-750v flame retardant class A class B control cables, flame retardant class A class B marine cables, 3.6-35kv medium voltage fireproof cables, mining cables and other flame retardant and fire-resistant safety cables.
Description:
Description: The product is a shaft shaped product made by twisting alkali free glass fiber yarn according to the specified number of bundles and strands.
| properties |
Data sheet |
|
| performance |
There is no lack of strands, uniform twist, tight and neat, and no obvious wool yarn. |
|
| Type |
diameter |
ration |
Breaking strength |
Oxygen index |
Burning weight loss rate |
|
| mm |
g/m |
N |
% |
% |
|
| 2# |
2.0 |
±0.5
|
≤7 |
≥10 |
≥100
|
≤22
|
|
| 3# |
3.0 |
≤22 |
≥35 |
|
| 4# |
4.0 |
≤27 |
≤45 |
|
| 5# |
5.0 |
≤32 |
≤65 |
|
| 6# |
6.0 |
≤36 |
≤80 |
|
| 7# |
7.0 |
≤42 |
≤90 |
|
| 8# |
8.0 |
≤55 |
≤100 |
|
| 9# |
9.0 |
≤68 |
≤110 |
|
| 10# |
10 |
≤82 |
≤120 |
|
| 11# |
11 |
≤93 |
≤130 |
|
| 12# |
12 |
≤100 |
≤140 |
|
| Environmental performance |
Data Sheet |
|
Unit |
Test Standards
|
|
Halogen content
|
(Cd) |
≤100 |
|
mg/kg |
IEC 62321 |
|
| (Pb) |
≤1000 |
|
mg/kg |
IEC 62321 |
|
| (Hg) |
≤1000 |
|
mg/kg |
IEC 62321 |
|
| (Cr(VI)) |
≤1000 |
|
mg/kg |
IEC 62321 |
|
| (PBBs) |
≤1000 |
|
mg/kg |
IEC 62321 |
|
Rock wool rope, also known as inorganic paper rope, is a material commonly used for insulation and protection in various applications, including cables. Here’s an overview of its properties, uses, and considerations:
Properties
- Composition: Made from natural minerals, primarily basalt rock, which is spun into fibers and then formed into rope or other shapes.
- Fire Resistance: Highly fire-resistant, making it suitable for high-temperature applications.
- Thermal Insulation: Excellent thermal insulation properties, helping to maintain temperature control in cable systems.
- Non-Toxic: Generally non-toxic and environmentally friendly, with low emissions.
Uses
- Cable Insulation: Used as a filler or insulator in cables to provide thermal protection and prevent heat transfer.
- Vibration Dampening: Helps absorb vibrations, which can enhance the durability and performance of cable systems.
- Fire Protection: Provides a barrier against fire and heat, making it ideal for use in industrial and construction applications.
Considerations
- Handling: Requires careful handling to avoid fiber release, which can be irritating to the skin and respiratory system.
- Moisture Resistance: While rock wool is moisture-resistant, ensure that it is suitable for the specific environmental conditions it will encounter.
- Compatibility: Ensure compatibility with other materials used in the cable construction to prevent chemical reactions or degradation.
FAQ
What are your main products?
1,YT MICA is engaged in the R&D, production, sales and service of fire resistant materials and accessory for cables and wires, high-clean materials, flame-retardant materials and other technologies, providing industry users with solutions based on "fire-resistant, flame-retardant, low-smoke and halogen-free". We provide ire resistant materials and accessory for cables and wires.
2.What about the product quality and which certificate do you have?
We have IATF16949,IS09001,1S014001 and ROHS certificate. We have strict quality control management system. Proceed Volume production exactly according to the approved sample quality and the technical data sheet requested by customer. We control internally every step of IQC,IPQC,OQC.
3. How long does it take to deliver after order?
For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.
4. What about your after-sale service?
We fully guarantee our product quality and will provide free technical guidance on operations.
System certifications obtained:
ISO9001 Quality Management System Certificate
ISO14001 Environmental Management System Certificate
ISO45001 Certificate of Occupational Health&Safety Management
IATF 16949 Quality Management System certificate
SA8000 Social Responsibility Management System Certificate
Yitian Mica has obtained 5 invention patents, 21 practical patents, 20 software registration rights, and 3 trademarks. More intellectual property rights has been applied for verification.
YTMICA 5 invention patents:
a mica insulation material for battery cells and its processing & application.
a squeeze-resistant fireproof mica tape for power batteries and its processing & application.
high-temperature resistant mica tape & mica thermal insulation parts and their production methods.
a processing method for fire-resistant mica tape.
a fire-resistant insulation tape for optical cables.
